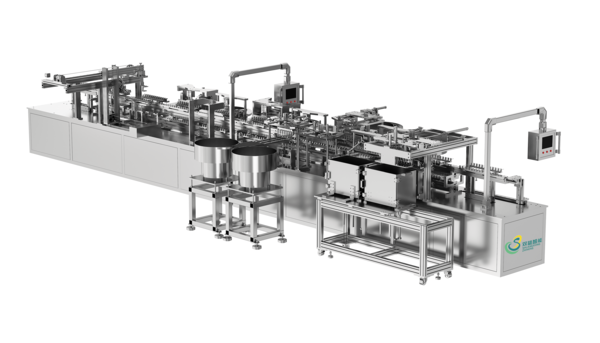

- This machine performs automatic assembly, automatic gluing, automatic testing, and automatic waste picking functions for parts of the butterfly needle cap, butterfly, tube, luer connector and cap
- Composition: Mechanical control system, 2. 380V.220V to 24V plus PLC control system, pneumatic control system. Three major components to achieve full computerized intelligent operation.
- Assembling range: Customized according to customer samples. Ensure that the products are free from excessive deformation, flying edges, and burrs.
- Assembling Speed:80-100pcs/min
- Input power:380V50HZ
- whole machine power :12KW Weight of the whole machine:3000KG.
- Pneumatic pressure: 5-8MPA.
