- 本机对六件套，导管，调节壳，调节轮，天然橡胶管，直两通，螺旋两通和注射针进行自动组装，自动涂胶，自动检测，自动剔废功能。

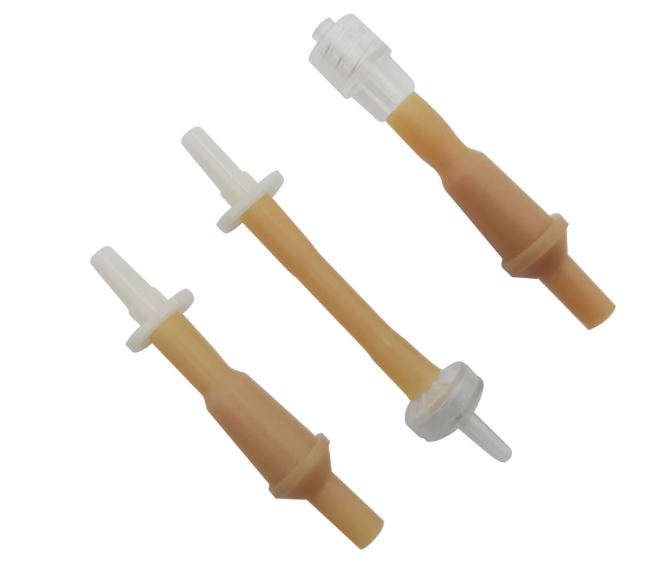

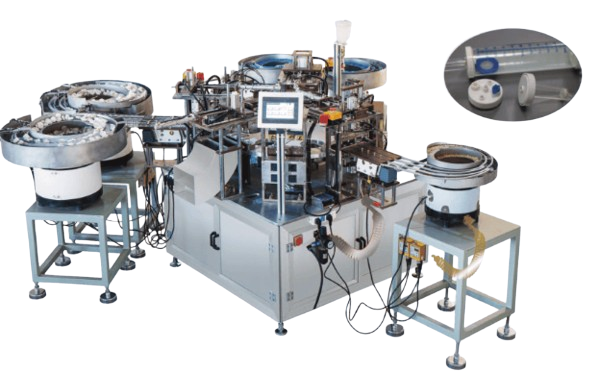

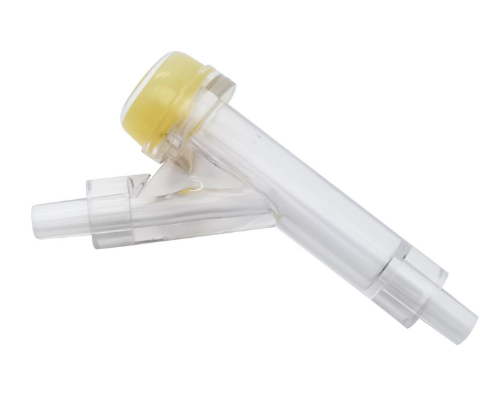

- This machine performs automatic assembly, automatic gluing, automatic testing, and automatic waste picking functions for parts of the chamber, roller and clamp, latex injection port, luer slip/lock connector, needles
- 本机构成：Composition:
- 机械控制系统，2. 380V.220V 转 24V 加 PLC 控制系统，气动控制系统， 三大部分组成实现全电脑智能化操作。
- Mechanical control system, 2. 380V.220V to 24V plus PLC control system, pneumatic control system. Three major components to achieve full computerized intelligent operation.
- 组装范围Assembling range:
- 根据客户样品定制。注；需保证产品无过度变形，无飞边，无毛刺。
- Customized according to customer samples. Ensure that the products are free from excessive deformation, flying edges, and burrs.
- 组装速度 Assembling Speed:80-100pcs/min
- 输入电源 Input power:380V50HZ
- 整机功率whole machine power :12KW
- 整机重量Weight of the whole machine:3000KG.
- 气压Pneumatic pressure: 5-8MPA.
